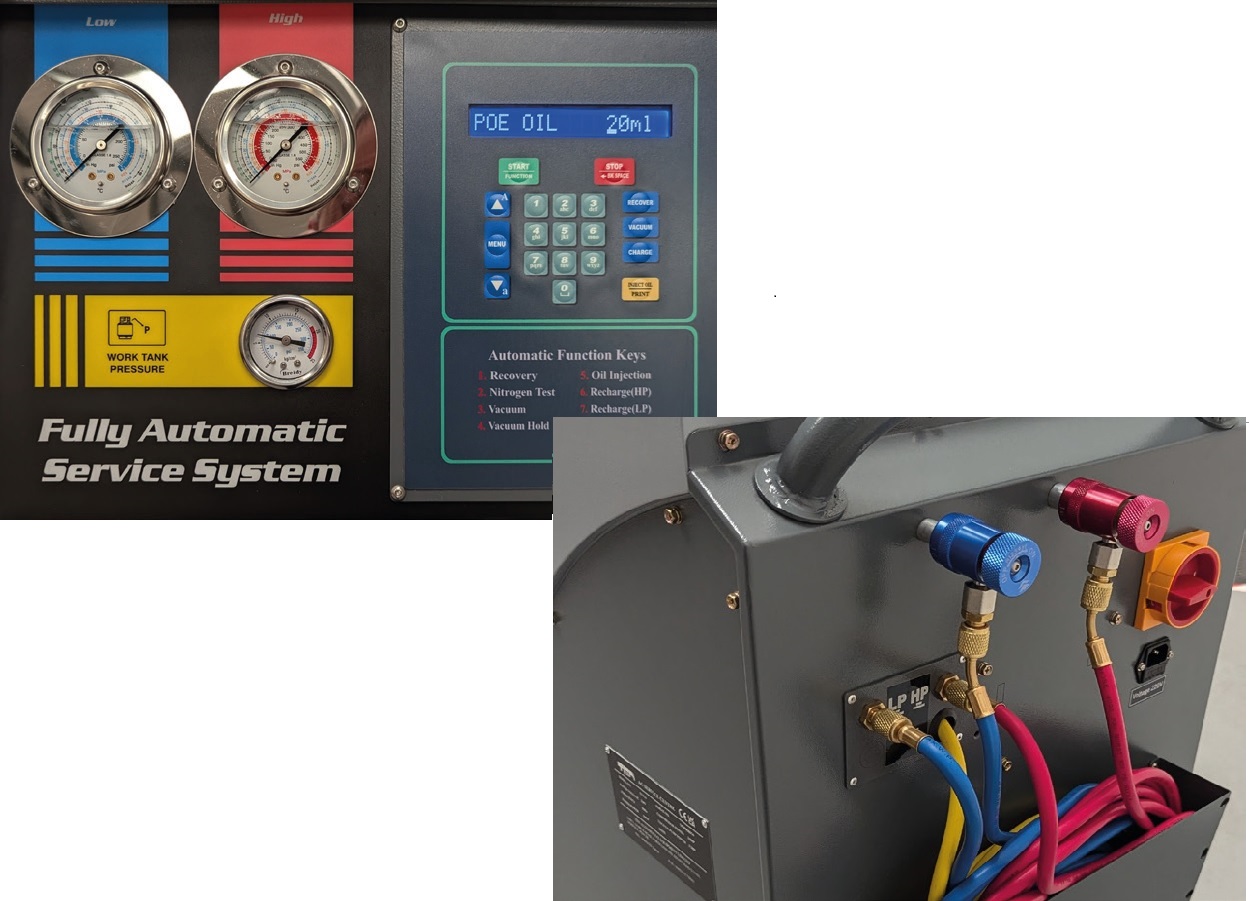

The TEN N2 Pro-Plus is a professional Air-Con Service Centre with both POE & PAG Oil Injection. A compact 'fully automatic' Air Conditioning Service Centre which has been developed to fulfil modern EV & Hybrid POE Oil and conventional PAG Oil A/C System servicing, without having to separate machines. It gives the Operator the option of moving away from the default POE Oil injection to PAG Oil Injection, during a Manual or Fully Automatic A/C Service, without changing Oil Bowls or flushing the Oil delivery system.


  • POE or PAG Oil Injection Selection
  • Simple Menu Operation
  • Fully Automatic or Manual Operation
  • Separately Labelled Oil Bottles
  • Integrated Nitrogen Leak Testing
  • Extra Long 5m Connection Hoses
  • Optional Thermal Printer
  • Quick Connect Coupling
  • Automatic Purging
  • Solid Metal Case
  • R1234yf A/C Refrigerant
  • Dual PAG Oil R-134a Model Available

Worried about injecting the wrong oil into an EV or Hybrid System?

No problem, the N2 Pro-Plus will always default to POE Oil injection at the beginning of every A/C Service so the operator has to intentionally change this selection, with key presses, if PAG Oil injection is required.

Fitted with 5 meter hoses, the N2 Pro-Plus will service an A/C System while other routine servicing is performed with the vehicle up on a ramp.

N2 Pro-Plus Operation:

Recovery/Recycling, Evacuation, Oil Injection & Refrigerant Recharging are automatically performed in a simple programmed, pre-selected routine or operated manually, if required.

The 'self-cleaning' process of Recovering Refrigerant & Oil from the hoses and internal manifold is performed twice, during an A/C Service cycle, so any residual or contaminated PAG/POE Oil is separated and deposited in the Used Oil Bottle for disposal. In addition, the vacuuming time has been maximise removal of any moisture.

With a large 12kg reservoir tank the N2 Pro-Plus also comprises of a heavy duty compressor for vehicle refrigerant recovery and a high flow vacuum pump for efficient moisture and contamination removal on larger A/C vehicle systems.
